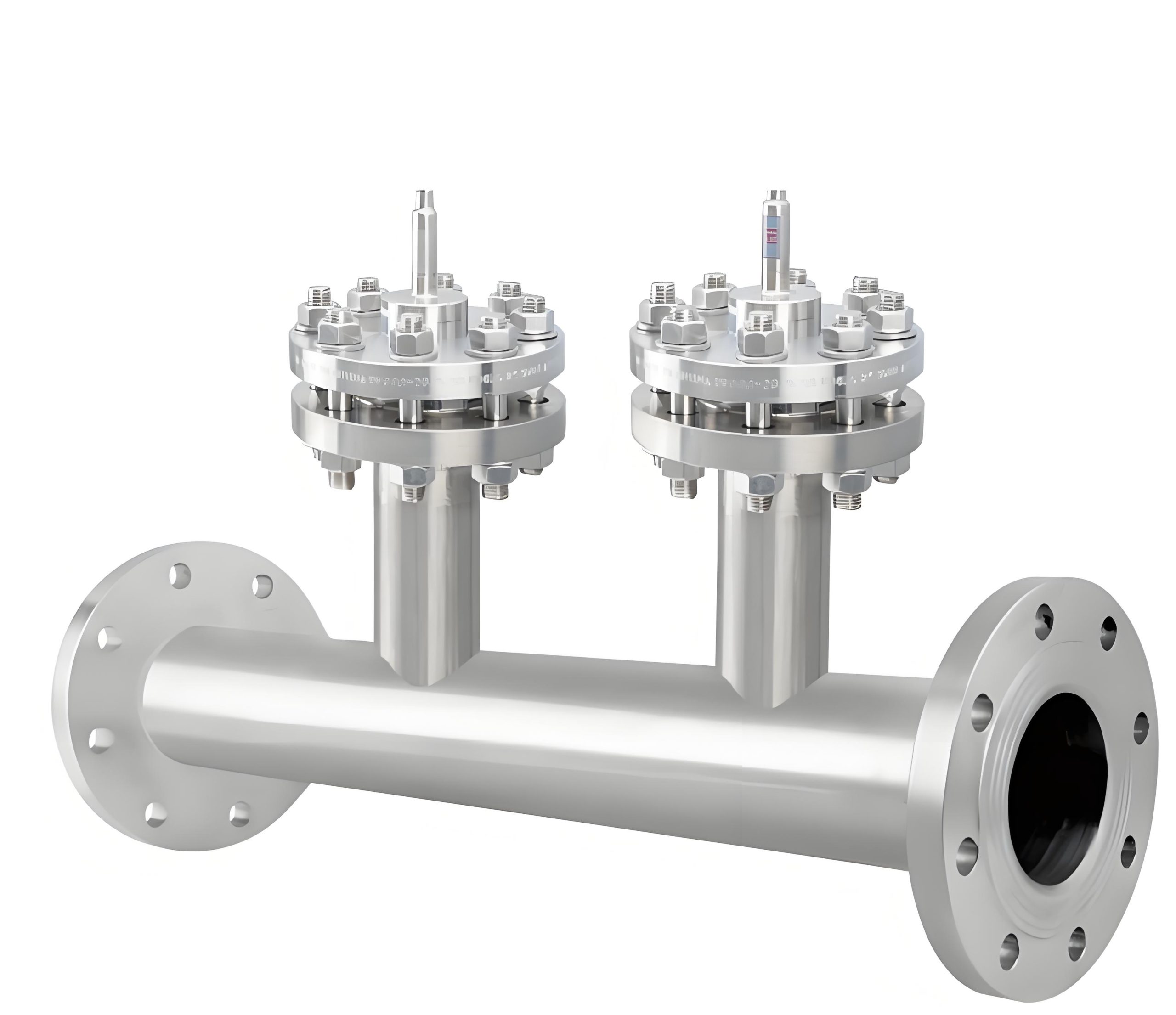

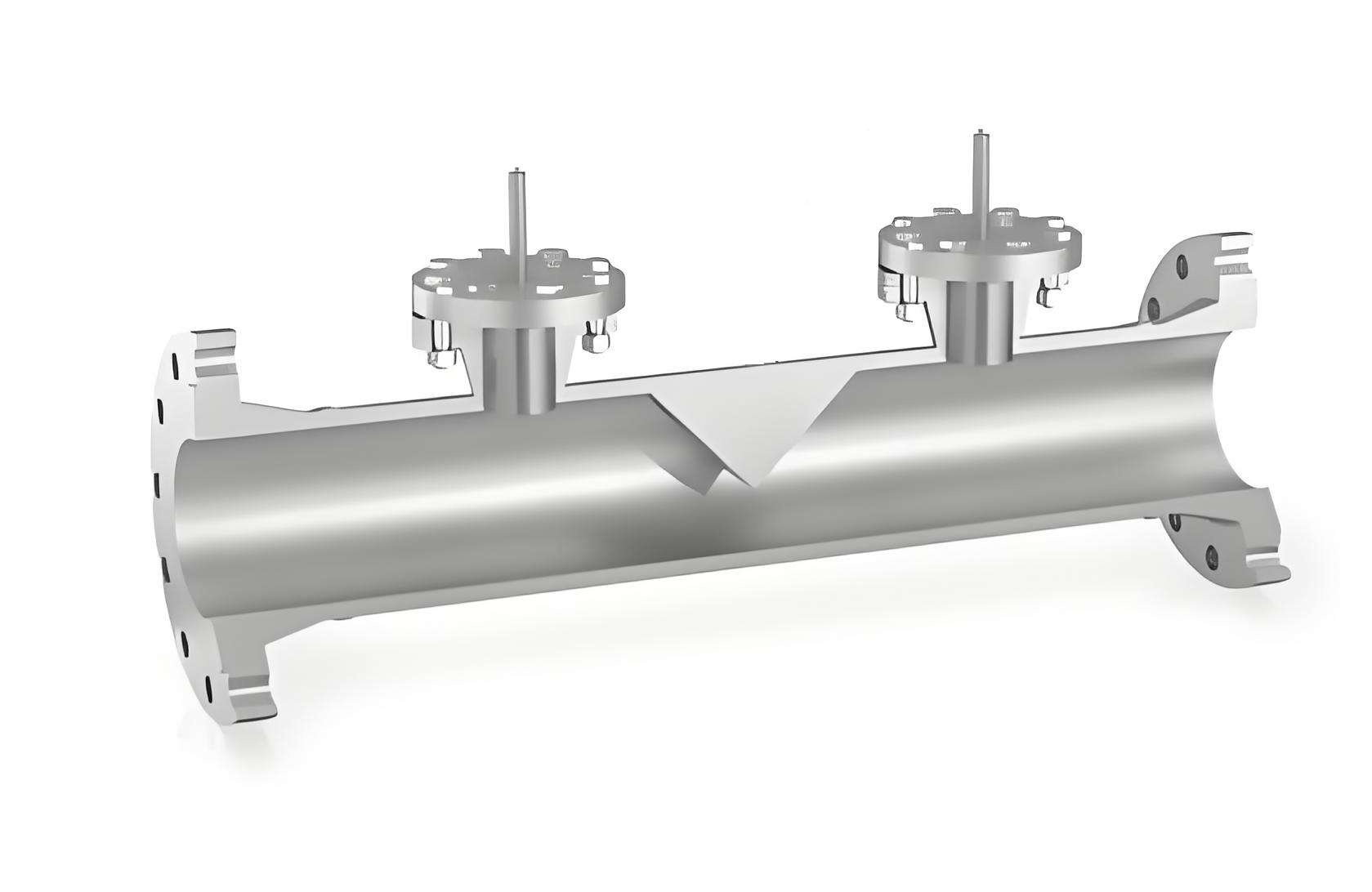

The DPF100 wedge flowmeter is based on the principle of differential pressure throttling, and combined with fluid dynamic simulation technology, in order to solve the problem of high viscosity and the measurement of polluted media.
Features & Benefits
- High and low temperature medium, high reliability
- High-precision up to ±0.5%
- Bi-directional flow measurement
- Viscous medium
- Slurry and suspended fluids
Technical Datasheet
Media: Liquid/Air/Steam
Native Fittings: DN15~DN600
Max. Pressure: 400bar
Accuracy : up to ± 0.5% of Reading
Repeatability: ≤± 0.2% of Full Scale
Inlet / Outlet: 10x Upstream, 5 x Downstream
Housing: Stainless steel or customized
